Purpose:
Frame :
Capacity :1250 – 2500kN
Point :
The inverter motor eliminates unnecessary pump rotation and greatly reduces power consumption. The amount of hydraulic oil is also reduced.
By mounting the servo valve directly to the cylinder, hydraulic elasticity is reduced, bottom dead center accuracy is stabilized, and responsiveness is improved.
The inverter motor optimizes the pump speed to achieve stable depth repeatability.
Linear scale minimizes the distortion of side frame opening and enables accurate ram positioning.
NC-controlled angle controller (standard for NET specifications) also improves accuracy.
– Various options to further increase productivity.
Conventional (bolt tightening) approx. 10 min. → I-clamp approx. 2 min.
Laser bending angle sensor that increase productivity and ensures stable processing at the targeted angle.
The tablet simulator has built-in bending CAM. Bending data can be created and modified on site or offline.
A large 15-inch touch panel has been adopted to greatly improve visibility and operability.
The simple and consistent screen design makes the operation screen easy to see, understand, and operate.

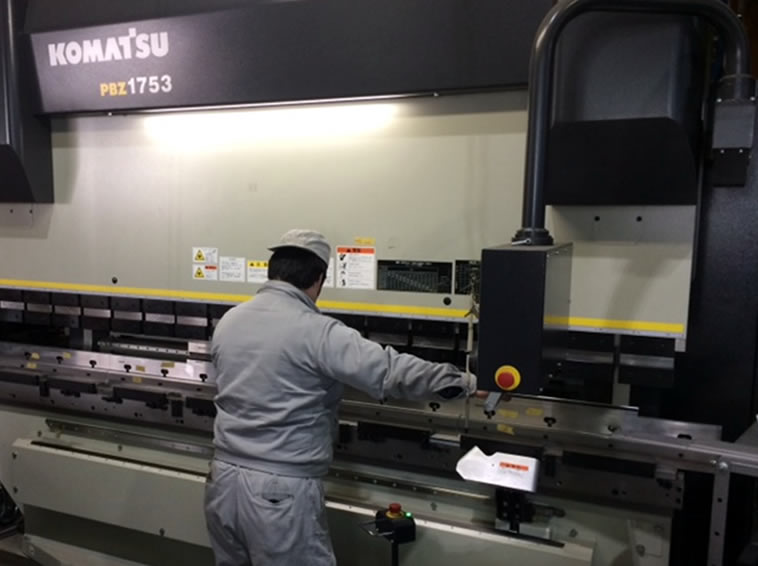

Sankyo Manufacturing Co., Ltd. manufactures a wide variety of products such as conveyance equipment, plant equipment, semiconductor equipment, food machinery, etc. from cutting to bending, welding and assembling. PBZ 1753 NET with 2-axis bending eye was delivered in May 2016 for bending of long stainless steel material.
Before using PBZ, it pressed many times with the old 3 m brake and hit with a hammer to obtain bending accuracy. But using PBZ’s bending eye makes the bending of long stainless steel accurate without any trial. It is highly evaluated that the time taken for the bending process has dramatically reduced.
